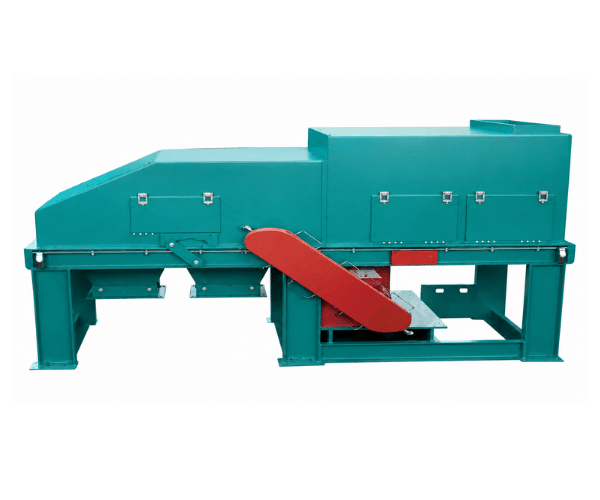

Eddy Current Separator
BMPE- Eddy Current Separation devices provide an effective way to remove non-ferrous metals from bulk materials. Typical applications include separating:
- Aluminum cans from municipal waste
- Aluminum flakes from shredded PET
- Brass and aluminum from foundry sands
- Non-ferrous metals (including lead) from shredded automobile scrap
Note: For successful non-ferrous separation, a primary magnet will be installed prior to the Eddy Current Separator to remove ferrous metals.

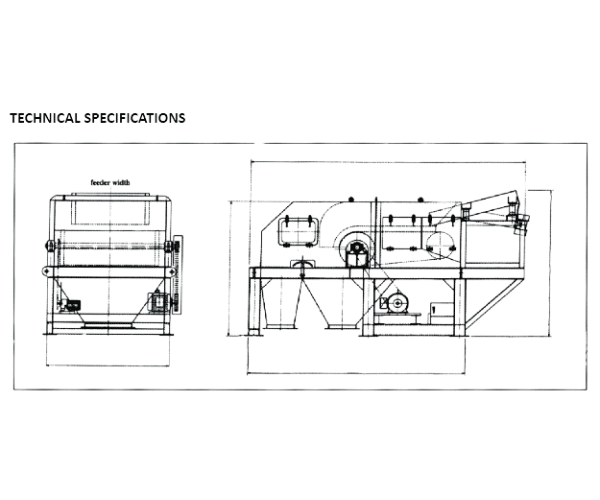

| MODEL | ROT-MOTOR | BELT-MOTOR | VIB-MOTOR | BELT WIDTH |
|---|---|---|---|---|
| BMPE-ECS-300 | 3.5 KW | 0.25 KW | 2 X 0.2 KW | 450 MM |
| BMPE-ECS-450 | 5.5 KW | 0.5 KW | 2 X 0.2 KW | 600 MM |
| BMPE-ECS-600 | 7.5 KW | 1 KW | 2 X 0.5 KW | 750 MM |
| BMPE-ECS-750 | 7.5 KW | 1.5 KW | 2 X 0.5 KW | 900 MM |
| BMPE-ECS-900 | 11 KW | 1.5 KW | 2 X 0.5 KW | 1050 MM |
| BMPE-ECS-1200 | 15 KW | 2 KW | 2 X 0.75 KW | 1350 MM |
| BMPE-ECS-1400 | 18.5 | 2 KW | 2 X 1.1 KW | 1550 MM |
Note: Technical data and specifications are subject to change
# Special Non Ferrous Eddy current metal separator can be made on request, Please send us your’s Technical data and Applications, required for our Engineers to provide.
