This equipment is crucial for preparing samples for other soil and aggregate tests like sieve analysis, specific gravity, water absorption, CBR Test, Proctor test etc., ensuring the samples used are representative of the entire batch.

Used for rapid collection of the true representative sample from aggregate, sand and fillers.

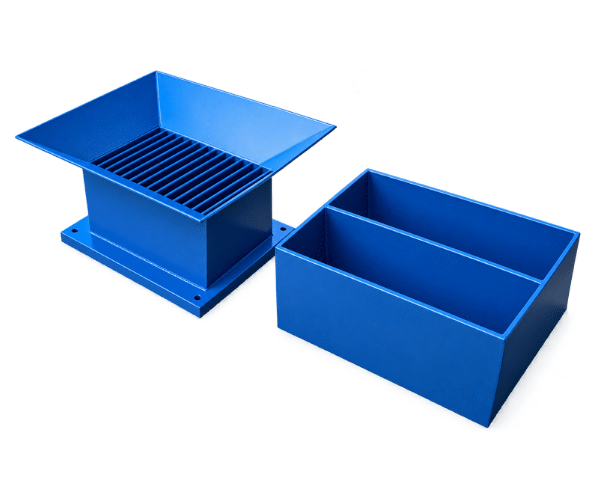

• Consist of a metal box fitted with a series of chutes of equal width which discharge the material alternatively in opposite directions into separate pans.

• The chutes of the riffle are steep enough to allow rapid flowing of the material.

• Each riffle sample divider is supplied with two pans and one scoop.

• Divider Size : 12.5/ As per customer required

• No of slots : 14 Nos

• MOC : M.S/S.S
