Magnetic Pulley

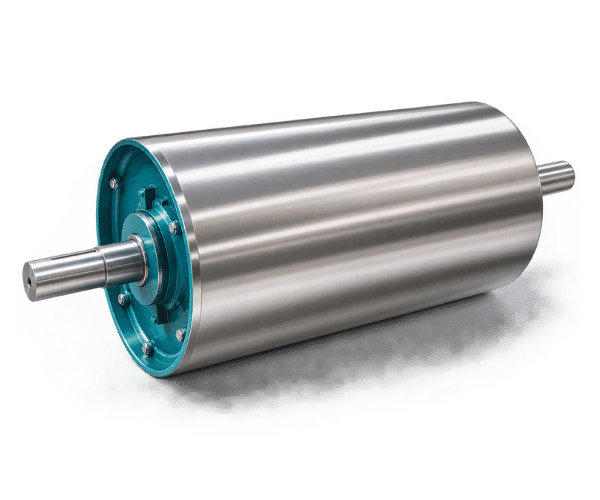

BMPE is a leading manufacturer and supplier of magnetic and vibrating equipment used in various industrial applications. Magnet rollers used as conveyor magnets consist of a 360° magnetic core encased in a durable, rotatable SS304 stainless steel cover with a central axis of rotation. These components deliver exceptionally high electromagnetic and magnetic force for conveyor roller operations.

Design advantages

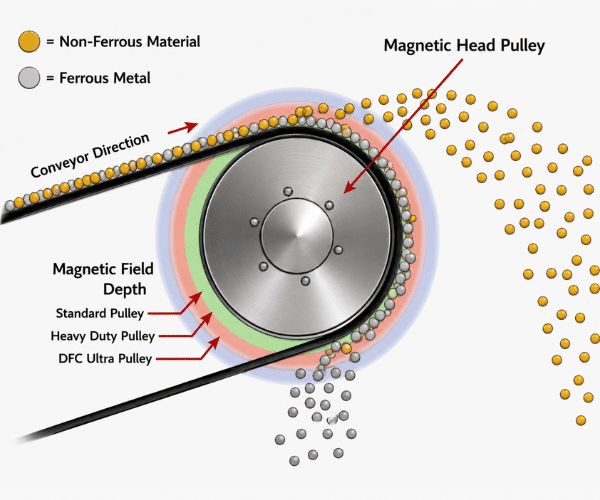

Magnetic head pulleys for belt conveyors are engineered using our exclusive flux-control magnetic circuit. This design provides continuous magnetism around the entire circumference of the pulley, eliminating dead spots. For less critical applications, a conventional magnetic circuit design is also available.

Duty ratings

Light Duty: Designed for general applications with burden depths up to 50 mm and belt speeds up to 1.8 m/s. Ideal for secondary cleanup of miscellaneous tramp iron and fine particles.
Medium Duty: Suitable for general use with burden depths up to 75 mm and belt speeds up to 2.0 m/s. Commonly used in Construction & Demolition (C&D) and Material Recovery Facilities (MRF).
Heavy Duty: Built for demanding operations with burden depths up to 100 mm and belt speeds up to 2.0 m/s. Designed for mining, foundry, and heavy-duty industrial separation.

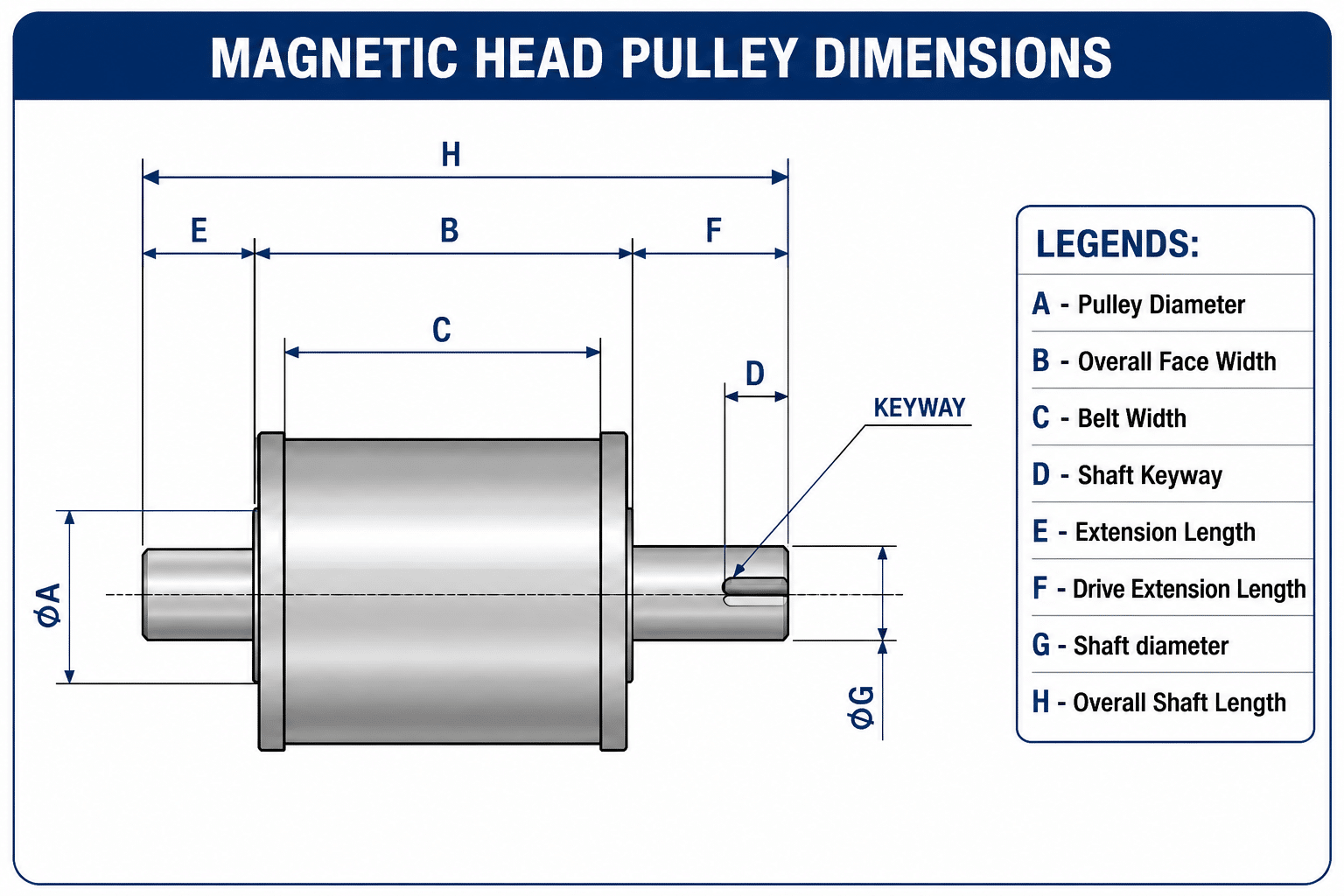

(A) PULLEY DIAMETER in mm	(B) OVERALL FACE WIDTH in mm	(C) BELT WIDTH in mm	(D) KEYWAY LENGTH in mm	(E) EXTENSION LENGTH in mm	(F) DRIVE EXTENSION LENGTH in mm	(G) SHAFT DIAMETER in mm	KEYWAY SIZE in mm	APPROX WEIGHT in kg
200	250	200	75	150	230	35	10 X 5	30
300	250	75	150	230	35	10 X 5	34
350	300	75	150	230	35	10 X 5	45
400	350	75	150	230	35	10 X 5	50
450	400	75	150	230	35	10 X 5	56
500	450	75	150	230	35	10 X 5	59
550	500	75	150	230	35	10 X 5	63
650	600	75	150	230	35	10 X 5	70
800	750	75	150	230	35	10 X 5	92
950	900	75	150	230	35	10 X 5	104
300	350	300	100	200	300	50	12.5 X 6.5	104
400	350	100	200	300	50	12.5 X 6.5	117
450	400	100	200	300	50	12.5 X 6.5	126
500	450	100	200	300	50	12.5 X 6.5	153
550	500	100	230	330	50	12.5 X 6.5	164
650	600	125	230	330	70	16 X 8	189
800	750	125	230	350	70	16 X 8	230
950	900	125	230	350	70	16 X 8	272
1100	1050	125	250	380	70	16 X 8	313
1250	1200	125	250	380	70	16 X 8	358
380	350	300	100	200	300	50	12.5 X 6.5	137
400	350	100	200	300	50	12.5 X 6.5	167
450	400	125	230	350	60	16 X 8	169
500	450	125	230	350	60	16 X 8	209
550	500	125	250	380	60	16 X 8	223
650	600	125	280	400	75	19 X 10	259
800	750	150	280	430	75	19 X 10	335
950	900	150	280	430	75	19 X 10	394
1100	1050	150	300	450	75	19 X 10	457
1250	1200	150	300	450	75	19 X 10	518
450	350	300	125	230	350	60	16 X 8	178
400	350	125	230	350	60	16 X 8	203
450	400	125	230	350	60	16 X 8	234
500	450	125	230	350	60	16 X 8	297
550	500	125	250	380	75	19 X 10	306
650	600	125	280	400	75	19 X 10	367
800	750	150	280	430	75	19 X 10	468
950	900	150	280	430	75	19 X 10	574
1100	1050	150	300	450	75	19 X 10	673
1250	1200	150	300	450	75	19 X 10	772
500	400	350	125	230	350	60	16 X 8	248
450	400	125	230	350	60	16 X 8	275
500	450	125	250	380	60	16 X 8	311
550	500	125	250	380	60	16 X 8	349
660	600	125	280	400	75	19 X 10	414
810	750	150	280	430	75	19 X 10	554
960	900	150	280	430	75	19 X 10	671
1110	1050	150	300	450	75	19 X 10	794
1270	1220	150	300	450	75	19 X 10	907
1420	1370	175	300	480	75	19 X 10	1037
1570	1520	175	300	480	75	19 X 10	1175
600	400	350	125	230	350	75	19 X 10	342
450	400	125	230	350	75	19 X 10	362
500	450	125	250	380	75	19 X 10	369
550	500	125	250	380	75	19 X 10	432
660	600	125	280	400	75	19 X 10	527
810	750	150	330	480	85	22 X 11	693
960	900	150	330	480	85	22 X 11	815
1110	1050	175	350	530	100	25 X 12.5	929
1270	1220	175	350	530	100	25 X 12.5	1040
1420	1370	200	380	580	100	25 X 12.5	1217
1570	1520	200	400	600	100	25 X 12.5	1357
750	500	450	125	350	500	100	25 X 12.5	677
550	500	125	350	530	100	25 X 12.5	711
660	600	125	350	530	100	25 X 12.5	855
810	750	150	400	580	110	25 X 12.5	1085
960	900	150	400	580	110	25 X 12.5	1278
1110	1050	175	450	630	125	32 X 16	1530
1270	1220	175	450	630	125	32 X 16	1737
1420	1370	230	500	760	140	32 X 16	1937
1570	1520	230	480	730	140	32 X 16	2167
900	500	450	150	300	450	100	25 X 12.5	997
550	500	150	300	450	100	25 X 12.5	1040
660	600	175	300	530	110	25 X 12.5	1217
810	750	175	300	530	110	25 X 12.5	1494
960	900	200	350	560	125	32 X 16	1814
1110	1050	200	350	560	125	32 X 16	2093
1270	1220	230	380	660	140	32 X 16	2408
1420	1370	280	380	710	150	38 X 19	2723
1570	1520	330	430	810	175	38 X 19	2993
