Best Solutions For Wet Or Dry Screening BMPE Screen Separator

BMPE Screen Separator is a unique particle size gradeable separator designed for greater capacity per square metre of screening area & oversize material discharge with relatively much less percentage fines than other screening machines.

Working Principle

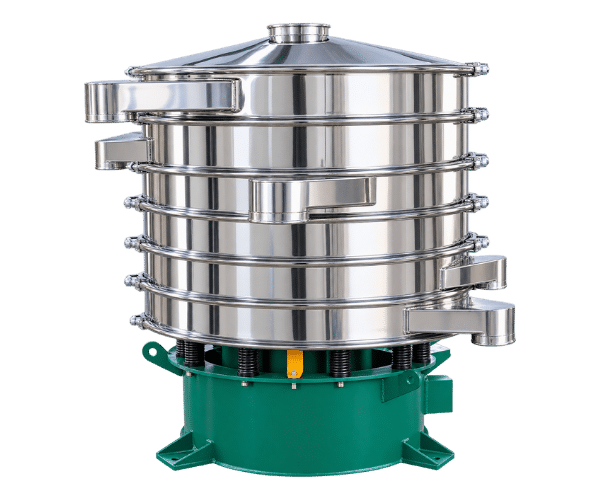

Gyratory screen separator In India

The top weight on the motor shaft rotates in a plane close to the centre of the mass of assembly. Rotation of the top eccentric weight creates vibration in the horizontal plane which causes material to move across the screen cloth to periphery. Increasing the top eccentric mass, increases the horizontal throw, causing oversize material to discharge at a faster rate.

The bottom eccentric weight rotates below the centre of mass, creating tilt on the screen, giving vibration in vertical & tangential planes. Increasing the vertical component of motion, which promotes turnover of material on the screen surface helping maximum quantity of undersize material to pass through the screen. The vertical motion also minimizes blinding of screen by “near size” particles.

The tangential component of motion is controlled by the angle of lead given to bottom weights with relation to top weight. Variation in lead angle controls the spiral pattern of material travel over the screen cloth. Speed & flow pattern of material travel over the screen cloth can be set by the operator for maximum throughput & screening efficiency for any screenable product…. wet or dry…coarse or fine… Heavy or light… hot or cold. Typical material passes rapidly through the screen during its travel to the periphery. The oversize material gets continuously discharged through a tangential outlet.

Dry Separation

E
Separation of different sizes of particles.
E
Chemicals: Polyvinyl chloride, melamine, phenolics, cellulose acetate, polystyrene, detergents, caustic soda flake, alum etc.
E
Pulp and Wood Products: Wood chips, particle board and wood flour.
E
Animal Feed: Scalping of foreign material, removal of bone chips etc.
E
Grains: Cleaning, Grading of Agricultural seeds and grains like rice, wheat, etc.
E
Cosmetics: For removing foreign particles from powders.

Dry Classification

E
Precise division of a dry material into sized fractions.
E
Tea: Grading of CTC & Orthodox tea up to 8 grades.
E
Petrochemicals: Sizing and reclaiming catalyst pellets etc.
E
Food: Coffee powders, ground coffee, dried milk, sugar, salt, spices, cashew nuts, flour, maida, dehydrated onion powder.
E
Pharmaceuticals: Aspirin, Boric acid, Epsom salts, sodium bicarbonate, tablet dedusting and granulations etc.
E
Fertilizers: Granulated mixes, potash, catalyst, urea, ammonium nitrate, sulphates and single super phosphates etc.
E
Ceramics & Abrasives: Carborundum, aluminium oxide and blasting silica. Pigments: Grading of powders.

Solid/Liquid Separator

E
Dewatering and removal of solid particles.
E
Paper and Pulp: Screening of adhesives, Starch Solutions, Paper Coatings and Black Liquor.
E
Removal of Pulp and other contaminants from clean & back water. Sizing, Scalping of wood chips without any clogging problem.Food: Separation of bagasse from sugar melt, slurry cum fibre from starch slurry. Clarifying of chocolate liquor, removal of pulp from juice etc.
E
Ceramics: Clarifies body and glaze slips for whiteware etc.
E
Chemicals: Separation of salt from glycerine, clarifying of polyvinyl acetate emulsions, paints and enamels etc.Minerals: Separation of impurities from kaolin slurry prior to centrifuging.
E
Classification of silica to remove iron impurities etc.Waste Disposal: Clarification of white water from pulp mills, cannery wastes, paunch manure from meat packing, distillery soap etc.
E
Paints and Pigments: Removal of foreign particles from liquid medium.

Salient Features

E
Modular design to yield up to 8 predetermined fractions
E
Low power consumption
E
Dust-free and noiseless processing

Models And Specifications

Model Screen Size (OD) Motor Power (HP) Overall Dimension for Single Deck* (mm) Weight (kg)
Length Width Height
BMPE-SS-20 450 0.25 900 900 1100 150
BMPE-SS-24 550 0.5 1100 1100 1250 200
BMPE-SS-36 850 1 1400 1400 1300 300
BMPE-SS-48 1150 2 1800 1800 1300 500
BMPE-SS-60 1450 3 2100 2100 1300 650
BMPE-SS-76 1750 5 2400 2400 1300 800
