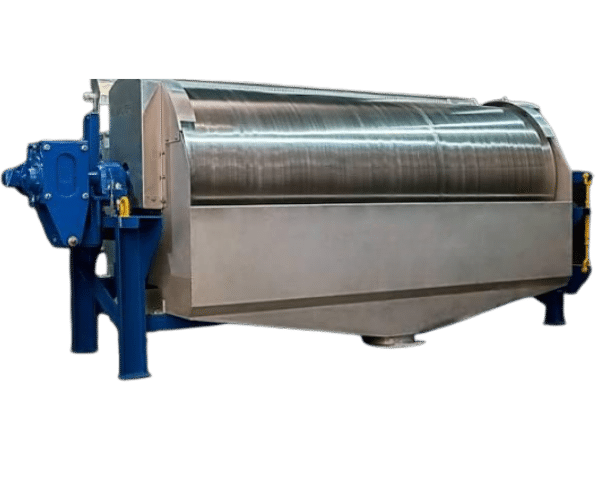

Our BMPE wet drum magnetic separators operate within a fine particle range of 1 µm to 3,000 µm (0.001 mm – 3 mm) to efficiently isolate magnetic particles from process liquids, sludges, and emulsions. Their high-intensity magnetic fields ensure the effective separation of magnetite or ferrosilicon from wet mediums.

Applications range from iron ore beneficiation and processing heavy solutions from flotation or sink/float separation, to purifying process water from degreasing baths and coolants. The systems serve a dual purpose: recovering valuable iron particles and capturing disruptive iron fragments to protect downstream equipment, such as membrane or ultra-filtration units.”

Wet drum magnetic separation is suitable for wet magnetic separation of magnetite, pyrrhotite, roasting ore, ilmenite, and other materials with a particle size of 3mm or less. It is also used for iron removal of coal, non-metallic minerals, building materials, etc.
1. Simple structure
2. Big capacity
3. Simple operation
4. Easy maintenance

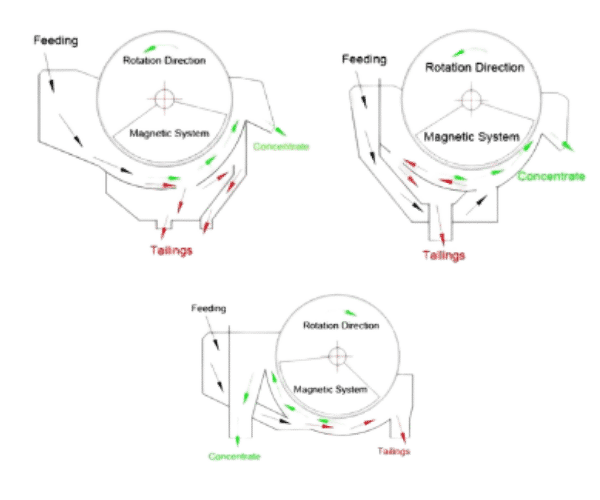

During the processing, the non-magnetic minerals in these minerals will fall off during this continuous turning process, and those that are adsorbed on the surface of the cylinder of the magnetic separator are the concentrates left by the equipment while producing. Due to the magnetic treatment of such a cylinder, these concentrates basically reach the weakest ends of the cylindrical magnetic force as the cylinder flips, and at the same time, under the action of the water flow discharged from the unloading water. And then into the concentrate tank of the concentrate, and other minerals left after treatment are discharged to the outside of the cylinder in the north. Such a mineral with a small amount of use is tailings.
According to the needs of users, it can provide magnetic separation of many different surface strengths such as downstream, semi-reverse flow and counterflow. The magnetic separator has the advantages of simple structure, large processing capacity, convenient operation, easy maintenance.
